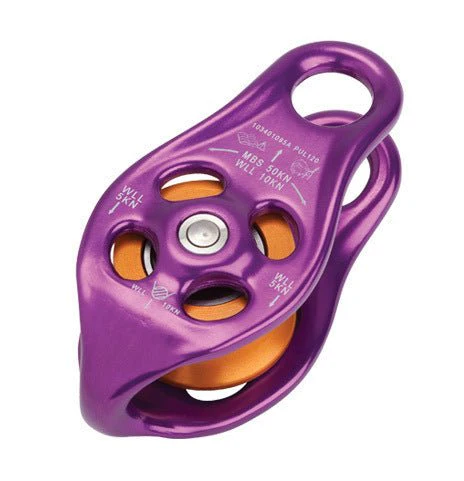

DMM Pinto Rig Climbing Pulley

DMM

Pinto Rig Pulley

With hardly a straight line in sight, the hot forged curves and fairlead flares of our Pinto Pulley make for an ultra efficient, ‘textile friendly’ environment.

Clip, hitch, splice or thread the anchor holes or the beckett to give numerous work and rescue configurations (textile attachments can help minimise any torsional build up in closed systems).

Slightly larger than the Pinto and accommodating a larger rope size, the Pinto Rig also has a high efficiency roller bearing giving ultra smooth operation.

• Conforms to EN12278:2007 (Pulleys) and NFPA 1983 (2012 Edition) G Rating
• Hot forged aluminium side plates provide strength and durability
• Heat treated stainless steel spindles for high strength and corrosion resistance
• Riveted and tamperproof assembly
• High efficiency roller bearing for ultra smooth operation
• Recommended for arborist, rescue, hauling and many applications where friction reduction is required and rigging applications
• Load bearing beckett
• Anodised to BS EN 7599:2010 AA10 Sealed for corrosion protection
