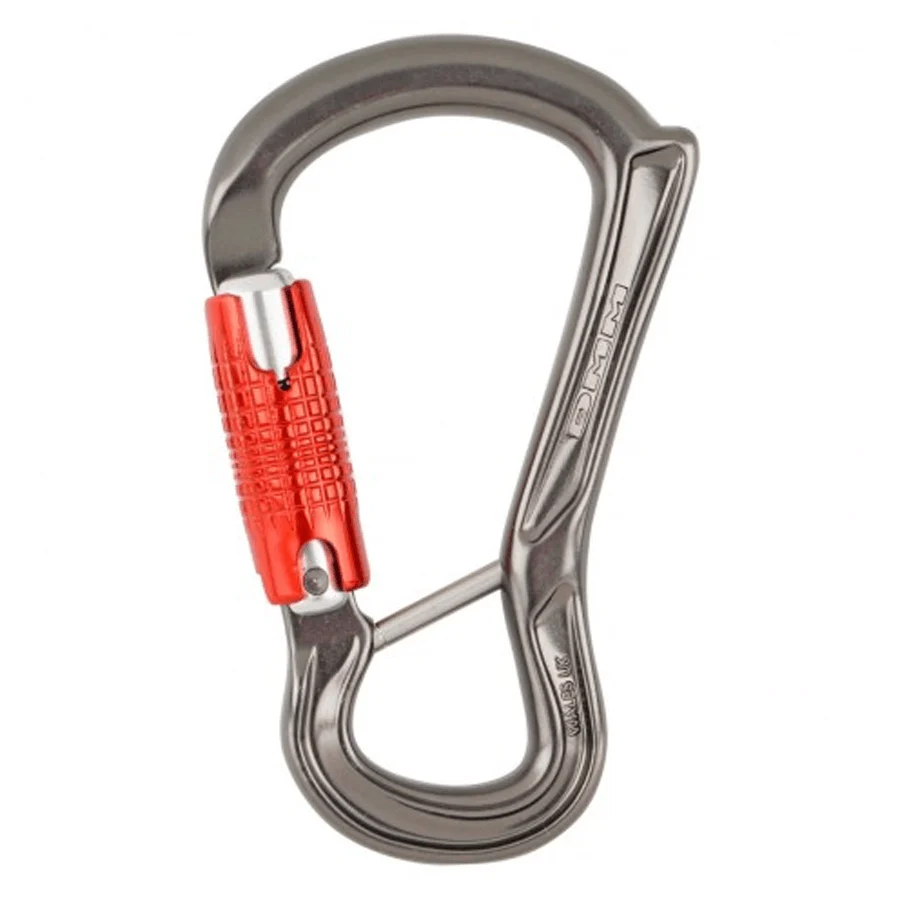

DMM Ceros Captive Bar Kwiklock Industrial Carabiner - Titanium/Red

The Ceros Captive bar helps align loads in the correct orientation and is simple to use. This added security is achieved with a removable, tamper-resistant captive bar that holds the Ceros captive on a harness or lanyard and a horn which prevents devices moving onto the connector’s spine. A full section top bar resists wear.

MBS (Major Axis): 25kN
MBS (Minor Axis): 7kN
MBS (Open Gate): 7kN
Dimensions: 74 x 121mm
Weight: 94g
Gate Opening: 19mm

Features

• Directional connector designed to ensure optimum orientation when used with rope control devices
• Downward opening internal wiregate gives additional security in one movement and prevents accidental removal once located
• Keylock nose eliminates snagging
• I-Beam construction for optimum strength to weight ratio
• Full section top bar for consistent rope handling and increased longevity
• Pronounced horn and flat base encourage optimal loading
